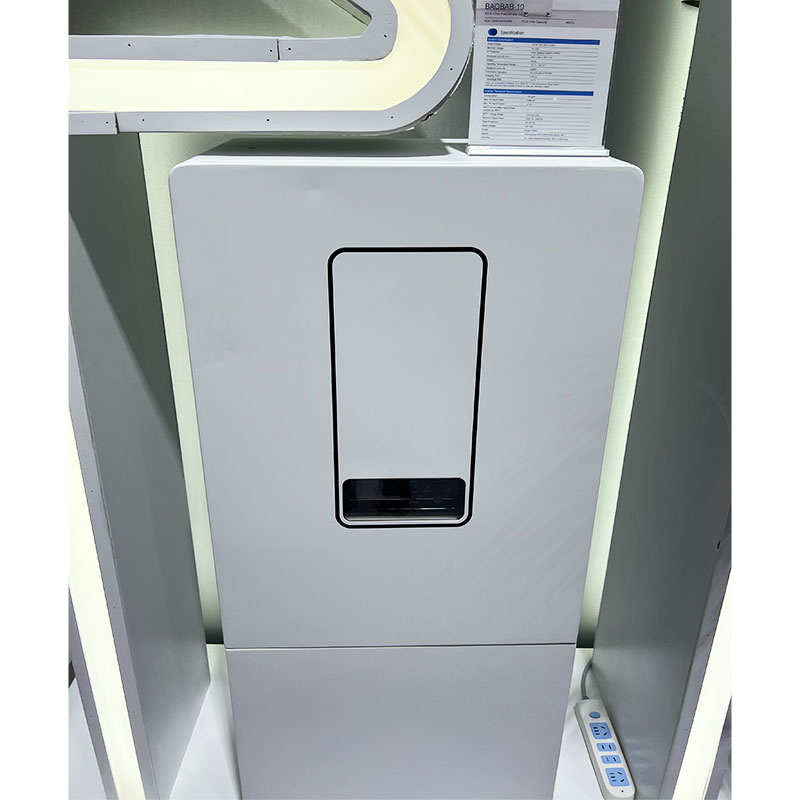

Smart 5kw 10kwh All-In-One Residential ESS Off Grid
Residential Energy Storage Systems (RESS) is crucial in improving energy resilience and reducing energy costs for homeowners. It provides energy storage for solar self-consumption, time-based control, and backup. Its revolutionary compact design makes it easier to install in any home or building, enabling owners to realize the benefits of reliable, clean power quickly.





System Specification
|
|
Rated Energy
|
10.55 kWh (95% DOD)
|
Nominal Voltage
|
48 VDC
|
IP Protection
|
IP54 (Battery System is IP65)
|
Dimension (W x D x H)
|
480 × 280 × 1071 mm
|
Weight
|
80 Kg
|
Operating Temperature Range
|
-10°C 50°C*
|
Designed Cycle Life
|
>=6000*
|
Connection Operation
|
Up to 6 units in Parallel
|
Charging Time
|
2 Hours
|
Charge/Discharge Rate
|
0.5C
|
* When the temperature is below 0 °C or above 40 °C, the performance will be limited.
* 6000 life cycle takes approximately 10 years for daily use.
|
|
Inverter Technical Specification
|
|
Configuration
|
Off-grid
|
Max. PV Input Power
|
6000 W
|
Max. PV Input Current
|
27 A
|
MPPT Number/Max. input strings number per MPPT
|
1/1
|
MPPT Voltage Range
|
150~430 VDC
|
Nominal Output Power
|
5500 VA / 5500 W
|
Rated Voltage
|
230 VAC
|
Rated Frequency
|
50/ 60 Hz
|
Phase
|
Single-Phase
|
Backup
|
10ms typical (UPS, VDE)/20ms typical (APL)
|
Humidity
|
5% to 95% Relative humidity (Non-condensing)
|
