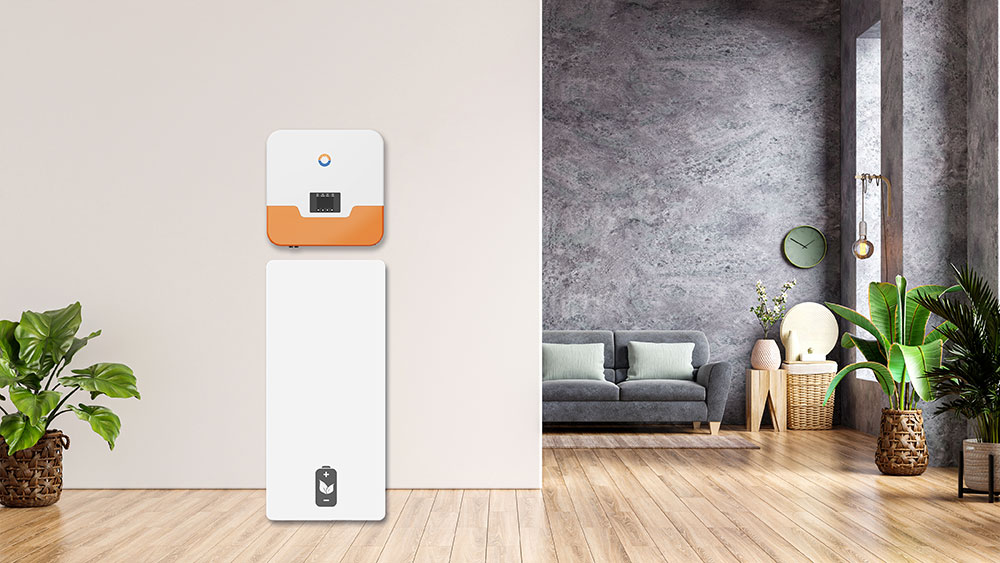

10-30kWh 6kW Residential Split Energy Storage System
Safe & Reliable
24 hours battery backup to ensure power supply
High-quality lithium battery, safe and efficient
Flexible & Convenient
Battery modular design, flexible expansion
APP monitoring, manage home energy in real-time
Energy Savings & Eco-friendly

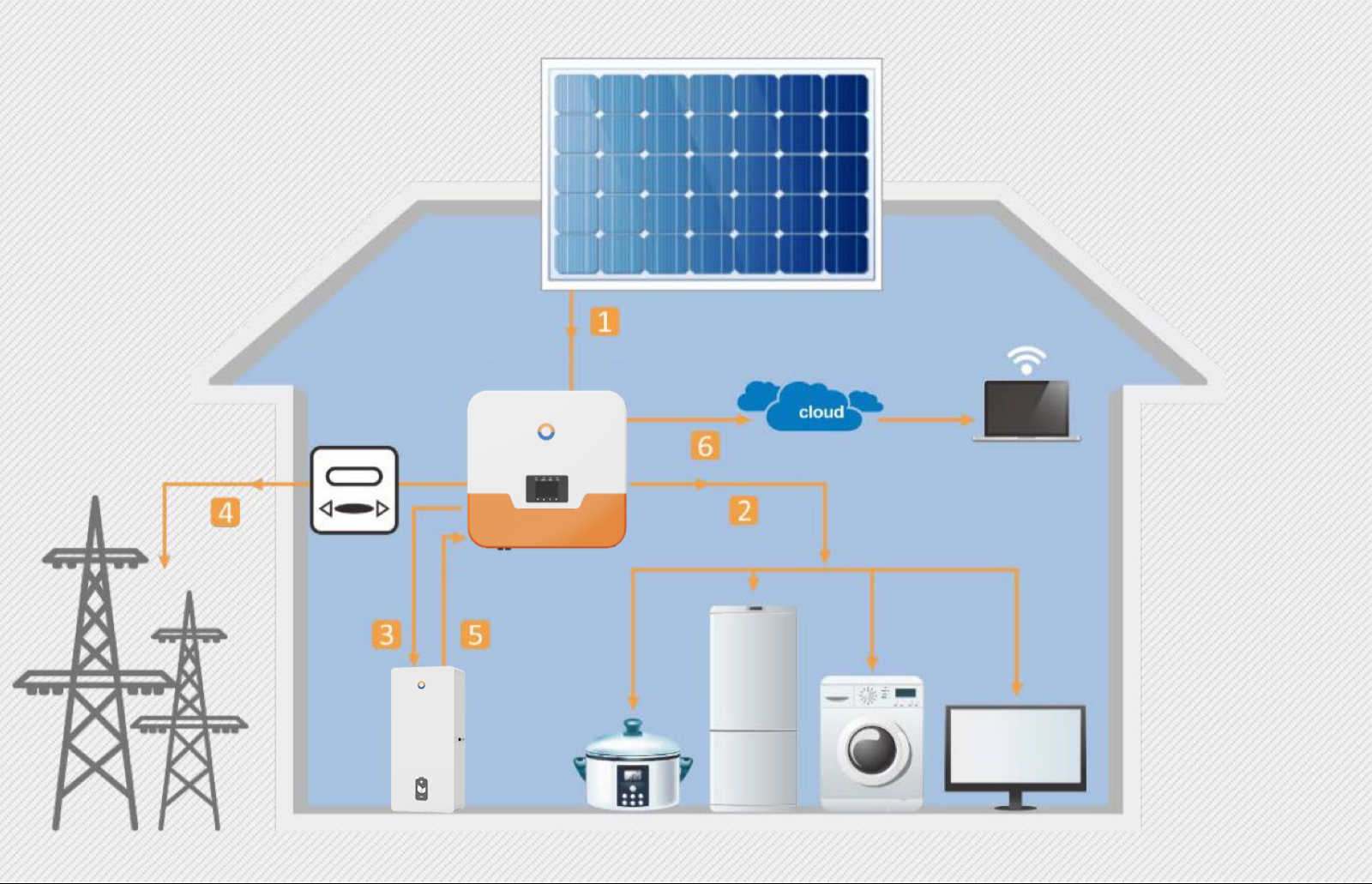

Charge in daytime and discharge at night peak hours, reduce electricity bill
Clean energy self-power and self-consumption to reduce carbon emissions
Form：
|
Hybrid Inverter |
iNV-HB1-3.6KL |
iNV-HB1-5.0KL |
iNV-HB1-6.0KL |
|
PV input |
|||
|
Max. Input Power |
4600W |
7000w |
|
|
Start-up voltage |
120V |
||
|
Max. PV voltage |
550V |
||
|
MPPT range/ nominal |
125V-500V/ 360V |
||
|
Max. input current |
14A/14A |
||
|
AC output |
|
||
|
Rated power va |
3600VA |
5000VA |
6000VA |
|
Max. output current |
16.0A |
21.7A |
26.0A |
|
Nominal voltage/ range |
230V/ 176V~270V |
||
|
Frequency |
50/ 60Hz |
||
|
EPS output |
|||
|
Automatic switchover time |
<20ms |
||
|
General data |
|||
|
Protection class |
IP65 |
||
|
Noise emission (typical) |
<35dB |
||
|
Operation temperature |
- 25 C~+60 C |
||
|
Cooling |
Natural |
||
|
Relative humidity |
0~95% (non-condensing) |
||
|
Dimensions (LxWxH) |
550x200x515mm/22x8x20inch |
||
|
Weight |
26kg |
||
|
Features |
|||
|
Display |
LCD |
||
|
Interface:rs485/ can/ drm/ wifi/ gprs |
yes/ yes/ yes/ opt opt |
||
|
Certificates |
|||
|
Certificates |
|
|
|
|
Battery |
|||
|
Battery number |
2pcs |
3pcs |
4pcs |
|
Nominal capacity |
10.2kWh |
15.3kWh |
20.4kwh |
|
Depth of discharge |
90% |
||
|
Nominal voltage |
51.2V |
||
|
Working voltage |
43.2-57.6V |
||
|
Max. charge current |
50A |
||
|
Max. discharge current |
50A |
||
|
Battery type |
LFP Lithium-ion |
||
|
Communication |
CAN |
||
|
Battery cabinet size (LxWxH) |
600x350x1300mm/24x14x51inch |
||
|
Protection class |
IP65 |
||
