6kw 9kwh Residential ESS On Grid 48v Lifepo4 Battery Plug & Play Home Solar Energy Storage System

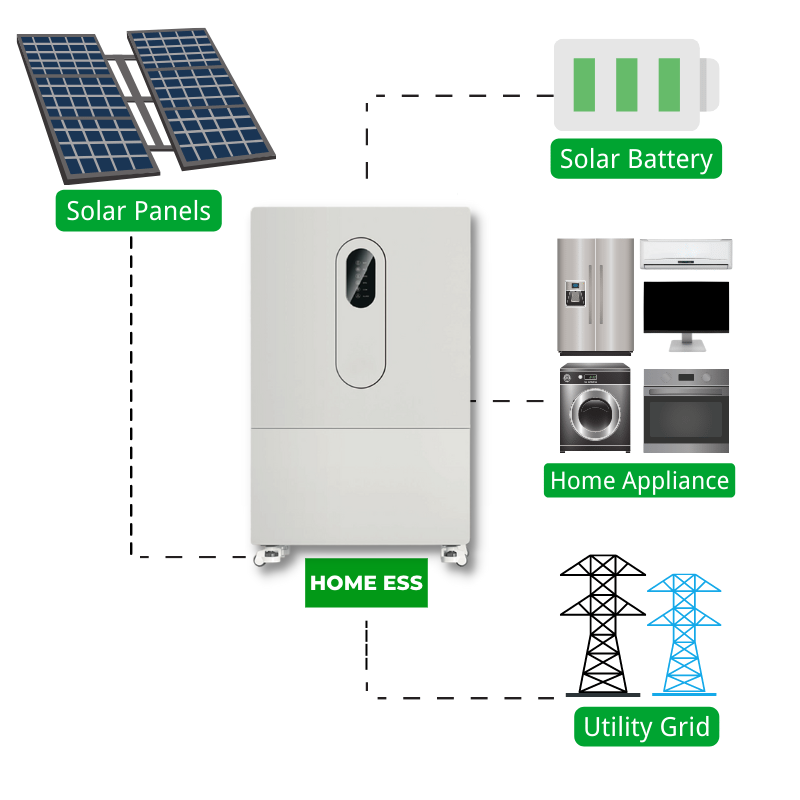

Residential Energy Storage Systems (RESS) is a crucial component to improving energy resilience and reduce energy costs for homeowners. It provides energy storage for solar self-consumption, time-based control, and backup. It’s revolutionary compact design makes it easier to install to any home or building, enabling owners to quickly realize the benefits of reliable, clean power.
This furniture type of home appliance is your ideal solution to hold your valuable force - electricity. The furniture-like design suits both indoor and outdoor installation, making everywhere in your home peaceful and harmonious. Features and Benefits:
●All-In-One system design
●Eliminate your outage anxiety
●More cost-efficient than ever
●Compact size, space saving
●10 ms smooth power backup
●Plug & Play
|
System Specification
|
|
|
Rated Energy
|
9.15 kWh (95% DOD)
|
|
Nominal Voltage
|
48 VDC
|
|
IP Protection
|
IP54 (Battery System is IP65)
|
|
Dimension (W x D x H)
|
670× 330 x 1100 mm
|
|
Weight
|
125 Kg
|
|
Operating Temperature Range
|
-10°C 50°C*
|
|
Designed Cycle Life
|
>=6000*
|
|
Connection Operation
|
Up to 9 units in Parallel
|
|
Charging Time
|
2 Hours
|
|
Charge/Disharge Rate
|
0.5C
|
|
Inverter Technical Specification (On/Off-grid)
|
|
|
Max. PV Input Power
|
9000 W
|
|
Max PV Input voltage
|
550 V
|
|
Max input current (input A/input B)
|
15 A/15 A
|
|
Max short current (input A/input B)
|
20 A/20 A
|
|
Start operating voltage
|
90V
|
|
MPPT Voltage Range
|
70~540 VDC
|
|
No.of MPPT trackers
|
2
|
|
String per MPP tracker
|
1
|
|
Nominal Output Power(Grid/Back up)
|
6000W
|
|
Rated Frequency
|
50/ 60 Hz
|
|
Rated Voltage
|
230 VAC
|
|
Phase
|
Single-Phase
|
|
Backup
|
10ms (typ) / 20ms (max)
|
|
Humidity
|
0% to 100%
|
|
Recommended PV module configuration
|
|||
|
PV Module Spec (reference)
|
Total solar input power
|
Solar input
|
Q'ty of modules
|
|
Maximum Power (Pmaxl): 540 W
Max. Power Voltage Vmpp(V): 41.3 VMax. Power Current Impp(A): 13.08 A Open Circuit Voltage Voc(V): 49.2 V Short Circuit Current Isc(A): 13.90 A |
3780 W
|
7 pieces in series, input 1 tracker
|
7
|
|
4320 W
|
8 pieces in series, input 1 tracker
|
8
|
|
|
4860 W
|
9 pieces in series, input 1 tracker
|
9
|
|
|
6480 W
|
6 pieces in series, 2 strings input 2 tracker
|
12
|
|
|
7560 W
|
7 pieces in series, 2 strings input 2 tracker
|
14
|
|
|
8640 W
|
8 pieces in series, 2 strings input 2 tracker
|
16
|
|
|
|
5400 W
|
10 pieces in series, input 1 tracker
|
10
|
