Low Voltage Residential Rack Mounted Energy Storage System

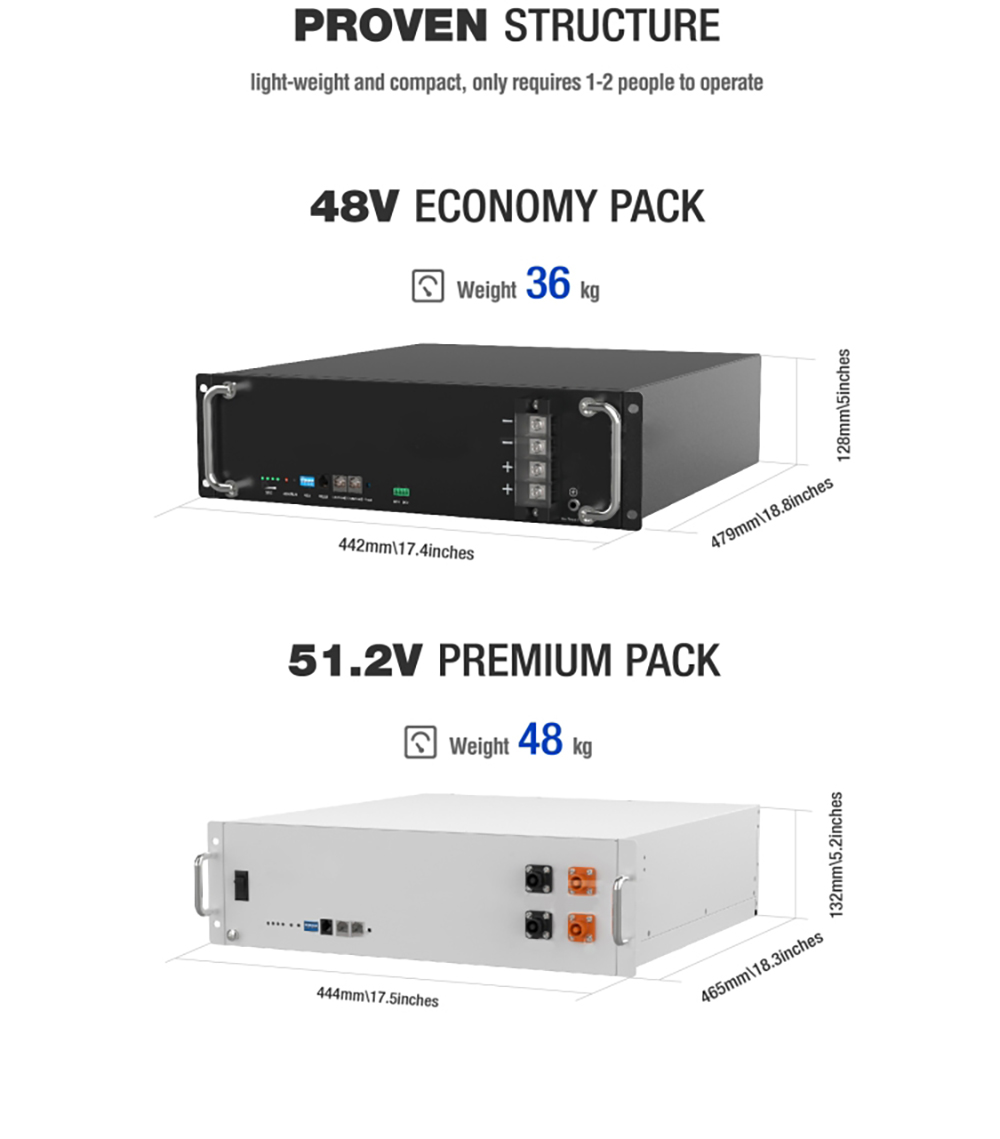

Light-weight and compact, only requires 1-2 people to operate.

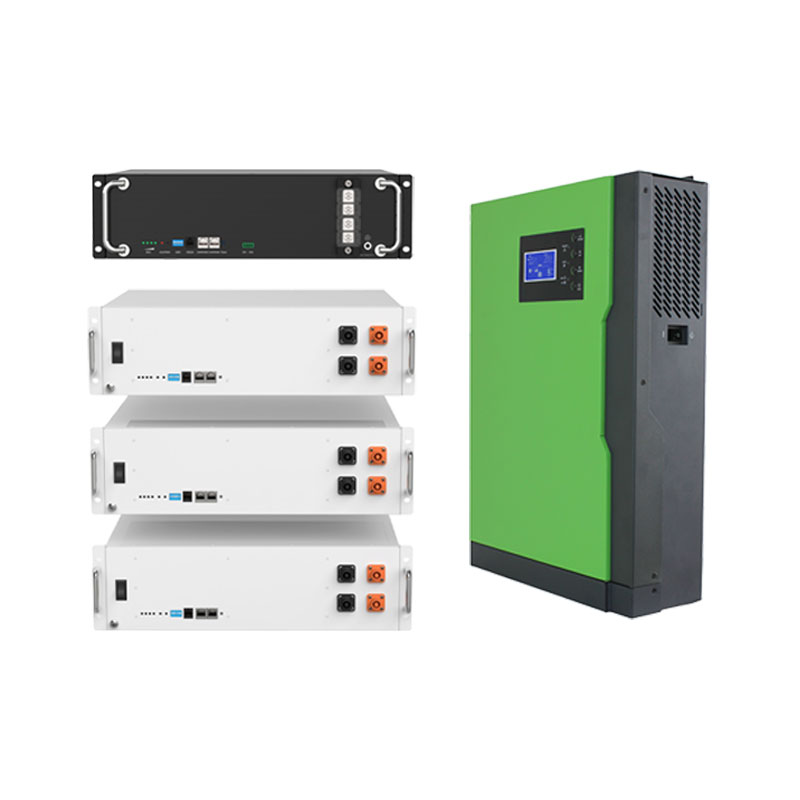

We provide 48V ECONOMY PACK and 51.2V PREMIUM PACK.

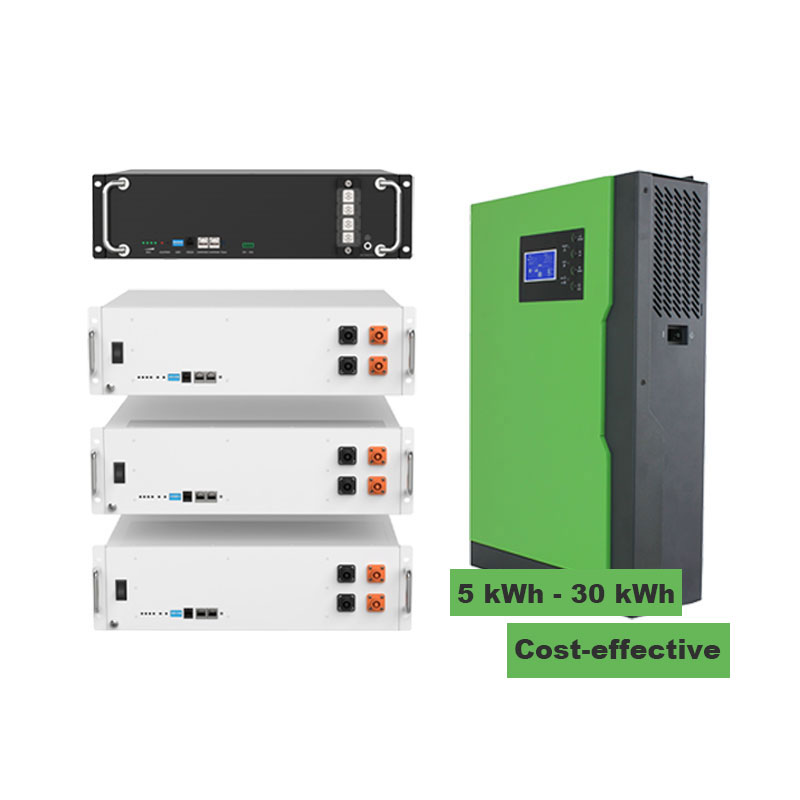

The most cost-effective solution for residential energy storage.
Form:
Battery |
ZN-P48100ESA1 |
LBB051100A-B |
Battery Type |
LFP |
LFP |
Configuration |
1P15S |
1P16S |
Rated Voltage |
48V |
51.2V |
Rated Capacity |
100Ah |
100Ah |
Rated Energy |
4.8kWh |
5.12kWh |
Voltage range |
42~54V |
44.8V~57.6V |
Rated charging current |
50A |
50A |
Max. charging current |
100A |
60A |
Rated discharging current |
50A |
50A |
Max. discharging current |
100A |
60A |
Cooling |
Natural cooling |
Natural cooling |
Protection |
IP20 |
IP20 |
Rating Weight |
36kg |
48kg |
Dimensions(W*D H) |
442*479*128mm |
444*465*132mm |
Ambient temperature |
Charge: 0~55°C, Discharge: -20~55°C, Storage: -30~60°C |
|
Operating humidity |
5~95%, RH |
|
Altitude |
≤2000m |
|

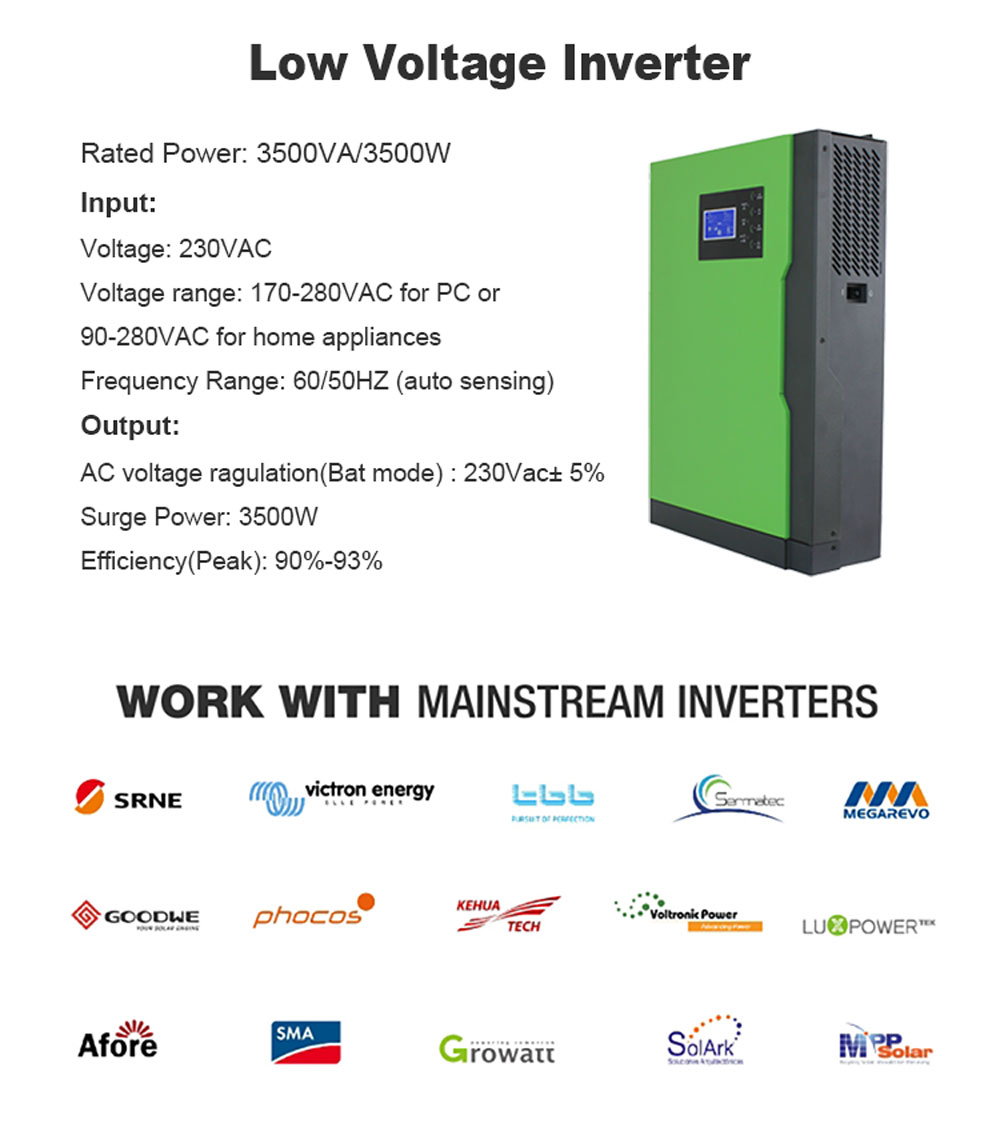

Inverter |
||
Rated Power |
3500VA/3500W |
|
Input: Voltage |
230VAC |
|
Voltage range |
170-280VAC for PC or 90-280VAC for home appliances |
|
Frequency Range |
60/50HZ (auto sensing) |
|
Output: AC voltage ragulation(Bat mode) |
230Vac± 5% |
|
Surge Power |
3500W |
|
Efficiency(Peak) |
90%-93% |
