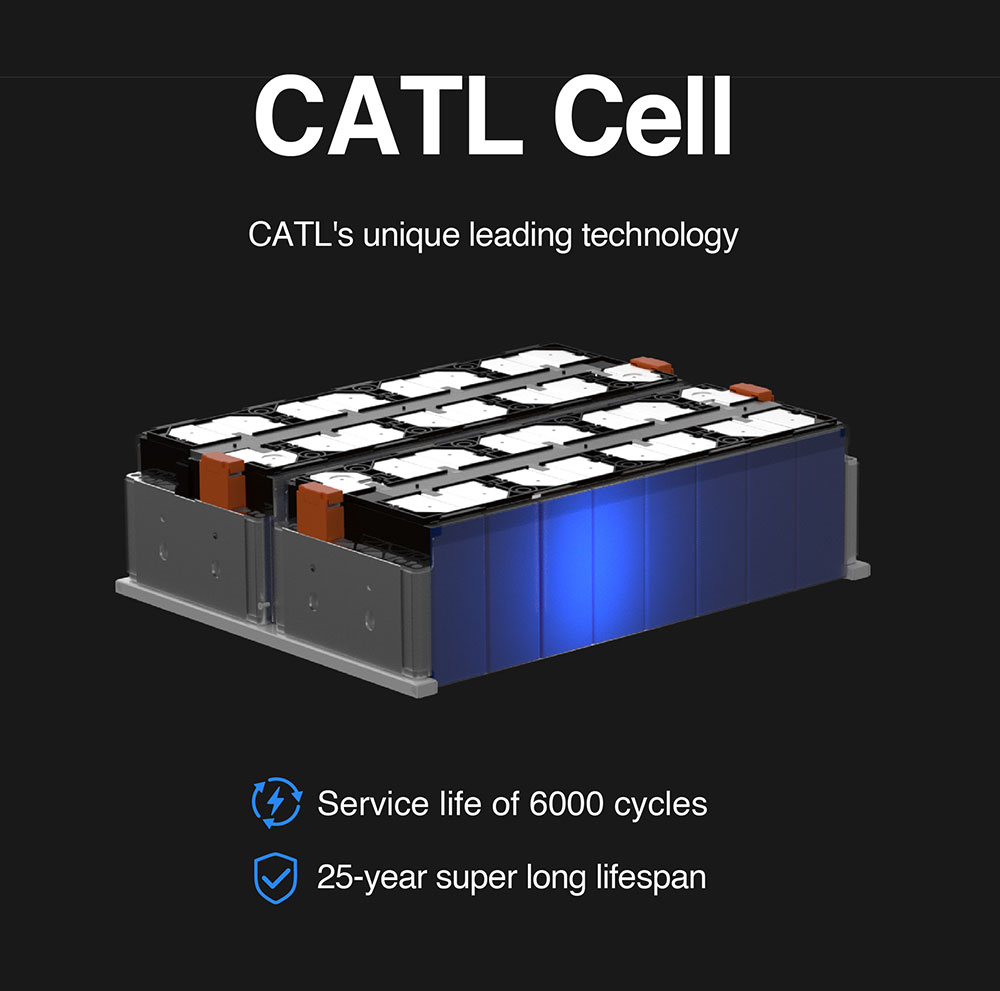

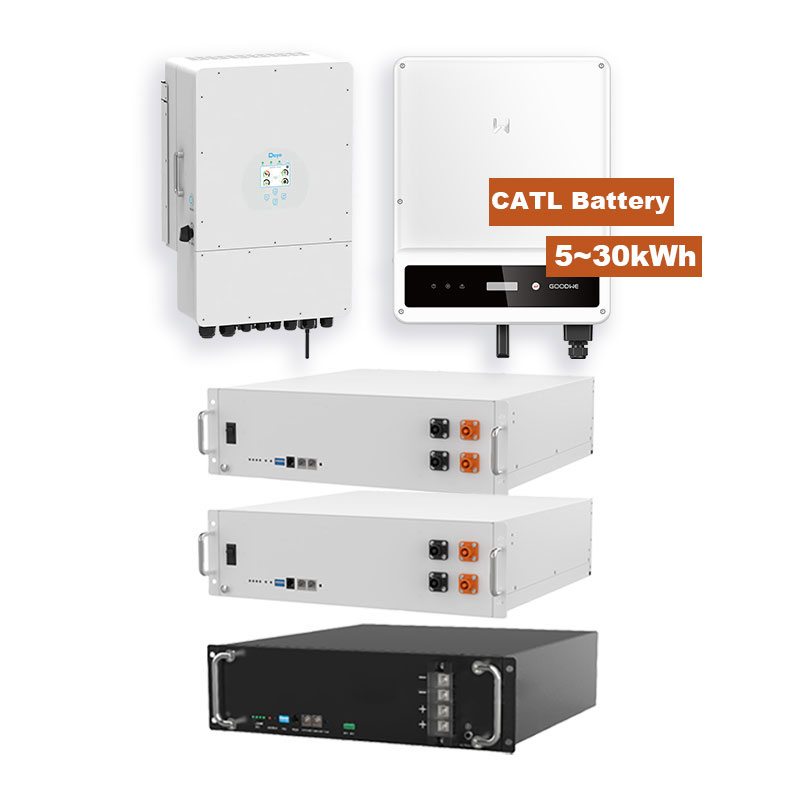

Low Voltage Residential Energy Storage System with CATL Battery Pack
>6000 cycles at 0.5C,100%DOD, EOL 70%
Mainteance-free

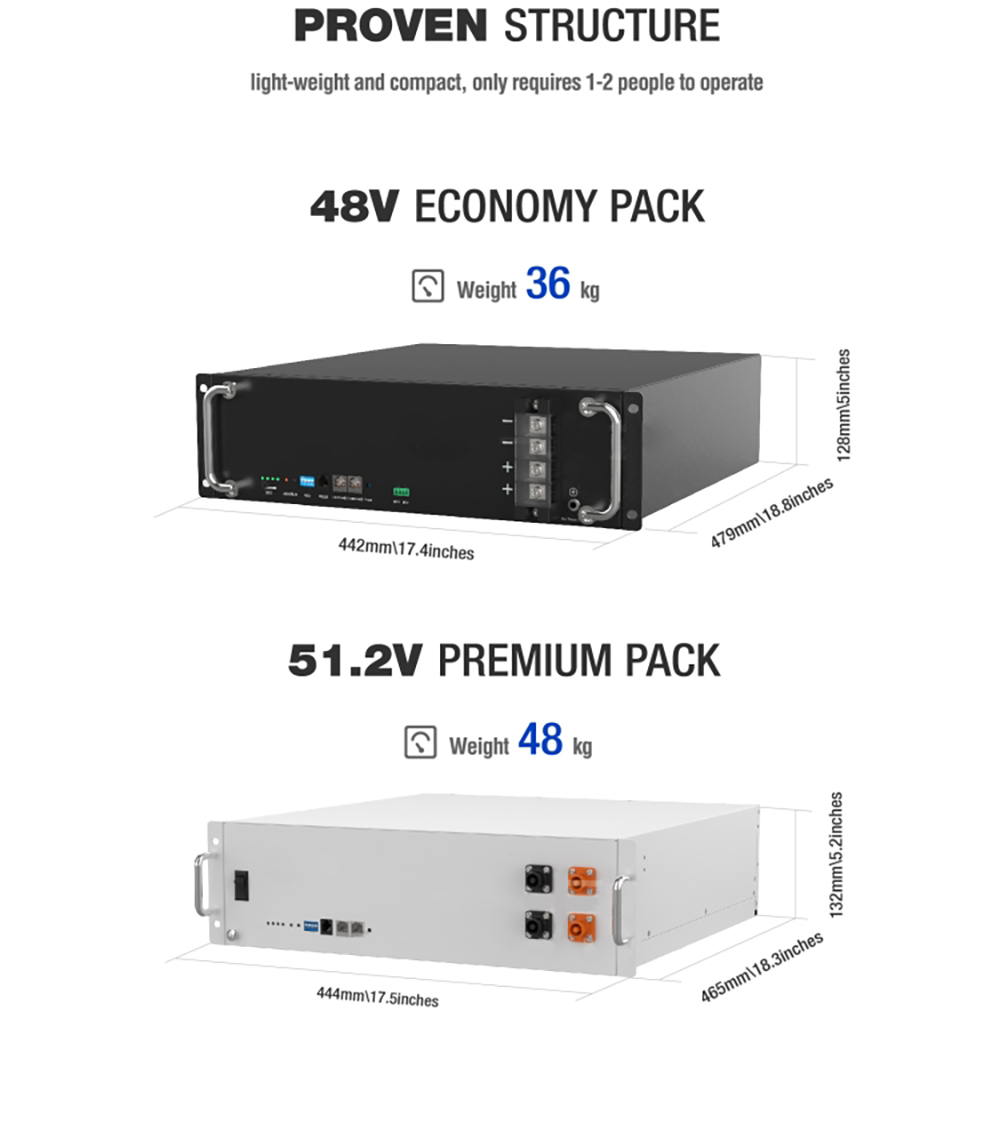

Porven structural design
1. High energy density
Innovative structure for larger capacity
2. Ensured Consistency

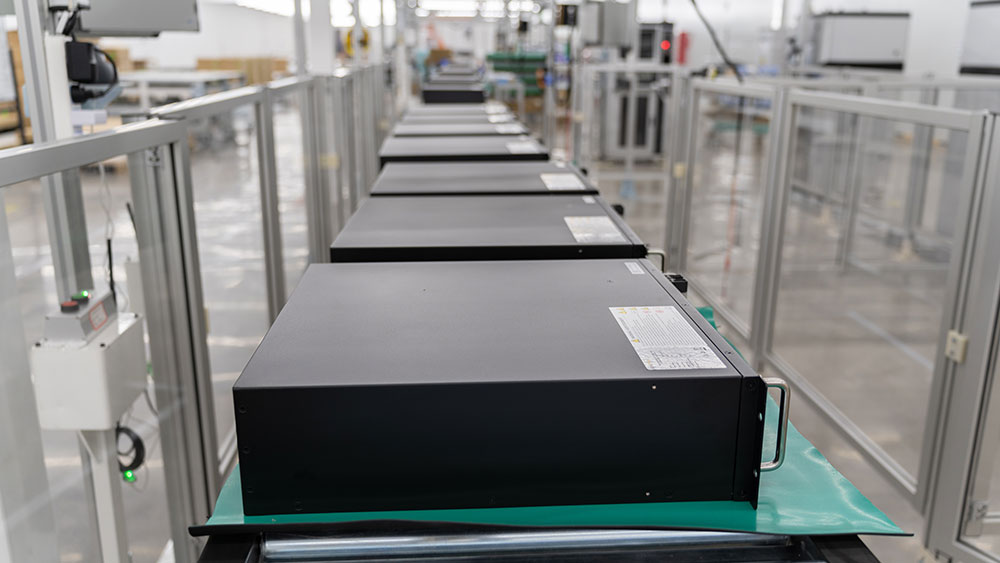

Highiy automated production equipment ensures consistency of battery cells
3. Stable voltage platform
Low internal resistance, high discharge rate, and stable discharge voltage platfomm
4. Safe and reliable
Lithium iron phosphate, the safest chemistry of all lithium battery types
Applicable to most inverter brands.
Form：
|
Model |
Mint-JKE05 |
Mint-JKE10 |
Mint-JKE15 |
Mint-JKE20 |
|
Battery Type |
LiFePO4 |
|||
|
Battery module quantity |
1 |
2 |
3 |
4 |
|
Nominal Voltage (V) |
102.4 |
204.8 |
307.2 |
409.6 |
|
Nominal Capacity (Ah) |
50 |
|||
|
Nominal Output Energy (KWh) |
5.12 |
10.24 |
15.36 |
20.48 |
|
Electrical Parameters |
||||
|
Voltage Range（V） |
83.2~115.2 |
166.4~230.4 |
249.6~345.6 |
332.8~460.8 |
|
Charging & Discharging Current (A) |
25@continue (Recommended) |
|||
|
Charging & Discharging Current (A) |
50@continue (Max) |
|||
|
Mechanical Parameters |
||||
|
Net Weight (±1.0 kg) |
71 |
124 |
177 |
231 |
|
Dimension (W*D*H,±2.0 mm) |
758*228*648 |
758*228*976 |
758*228*1304 |
758*228*1632 |
|
Ingress Protection |
IP65 |
|||
|
Cooling |
Natural Cooling |
|||
|
Operation Condition |
||||
|
Environment Temperature(℃) |
Charge:1~55, Discharge:-20~60, Storage:-10~45 |
|||
|
Operation Humidity (RH) |
5~95% |
|||
|
Altitude (m) |
＜2000 |
|||
|
Mounting Type |
Floor-mounted |
|||
|
Designed life |
>10 years |
|||
|
Certificates & Standards |
IEC62619,IEC60730,IEC62040,EN61000-6-1,EN61000-6-3,UN38.3 |
|||
