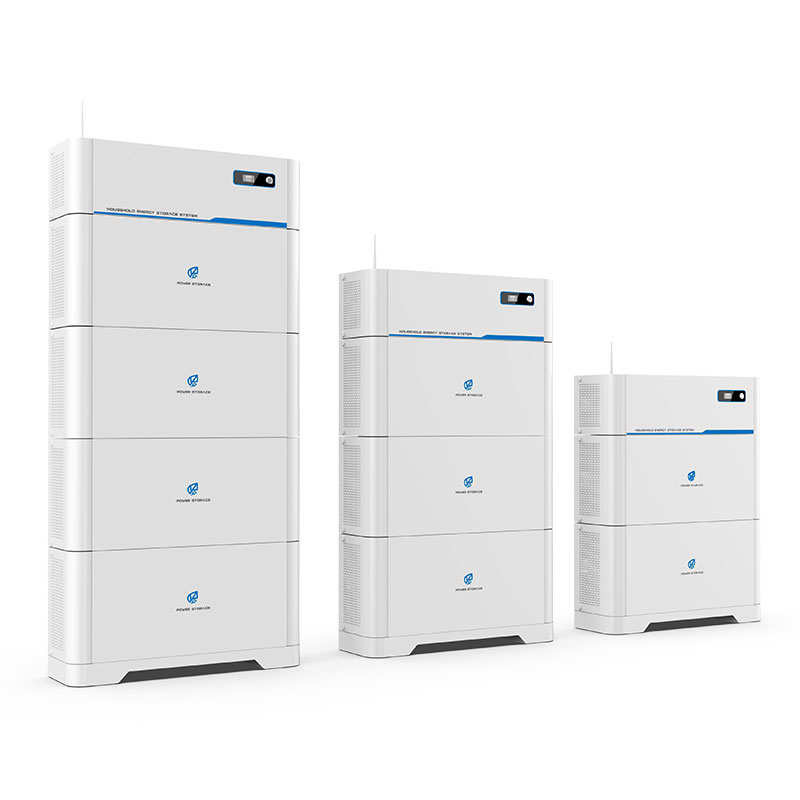

5-20kWh High Voltage Home ESS with Stacked Battery and Inverter

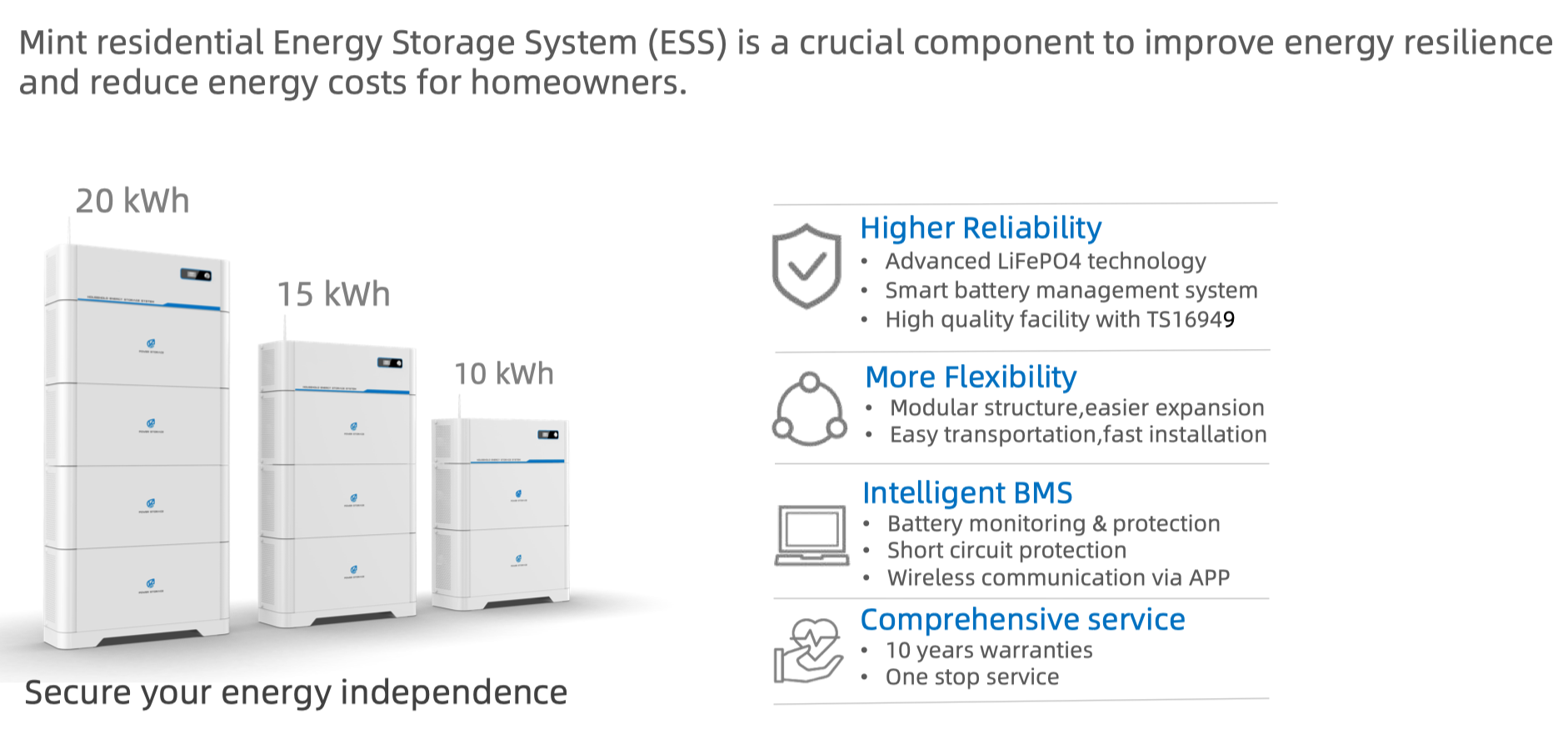

Mint residential Energy Storage Systems (ESS) is a crucial component to improving energy resilience and reduce energy costs for homeowners. Our smart efficient high voltage energy storage modules can be deployed with a wide range of industry standard inverters and power control systems.
Form：
|
Model |
Mint-OE05 |
Mint-OE10 |
Mint-OE15 |
Mint-OE20 |
|
Battery Type |
LiFePO4 |
|||
|
Battery module quantity |
1 |
2 |
3 |
4 |
|
Nominal Voltage (V) |
102.4 |
204.8 |
307.2 |
409.6 |
|
Nominal Capacity (Ah) |
50 |
|||
|
Nominal Output Energy (KWh) |
5.12 |
10.24 |
15.36 |
20.48 |
|
Electrical Parameters |
||||
|
Voltage Range（V） |
83.2~115.2 |
166.4~230.4 |
249.6~345.6 |
332.8~460.8 |
|
Charging & Discharging Current (A) |
25@continue (Recommended) |
|||
|
Charging & Discharging Current (A) |
50@continue (Max) |
|||
|
Mechanical Parameters |
||||
|
Net Weight (±1.0 kg) |
71 |
124 |
177 |
231 |
|
Dimension (W*D*H,±2.0 mm) |
758*228*648 |
758*228*976 |
758*228*1304 |
758*228*1632 |
|
Ingress Protection |
IP65 |
|||
|
Cooling |
Natural Cooling |
|||
|
Operation Condition |
||||
|
Environment Temperature(℃) |
Charge:1~55, Discharge:-20~60, Storage:-10~45 |
|||
|
Operation Humidity (RH) |
5~95% |
|||
|
Altitude (m) |
＜2000 |
|||
|
Mounting Type |
Floor-mounted |
|||
|
Designed life |
>10 years |
|||
|
Certificates & Standards |
IEC62619,IEC60730,IEC62040,EN61000-6-1,EN61000-6-3,UN38.3 |
|||
